Nóż tokarski składany PDJNR 2020 K15 - 93°
Opis

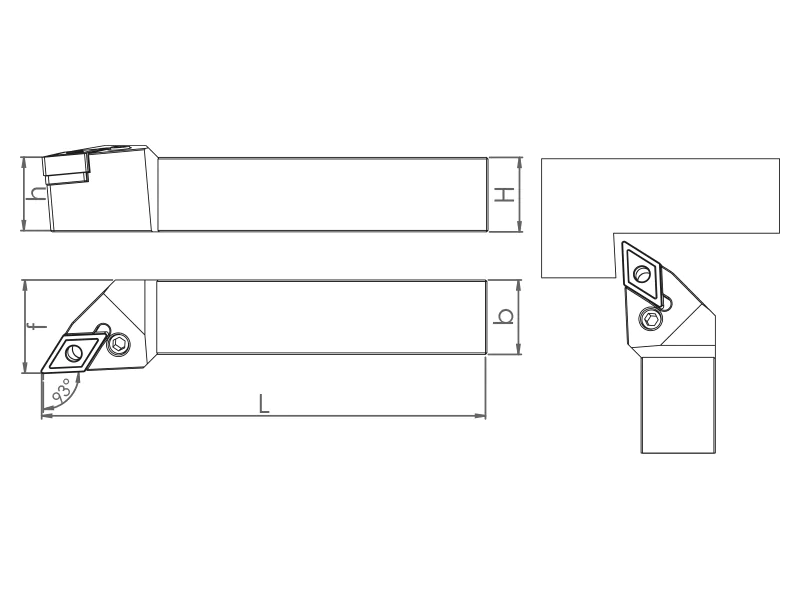

| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | ||||
| Direction | PDJN R/L (93) | h=H | b | L | f | ![]() |
|
| Right | Left | ||||||
|
SM01794
|
SM01800
|
PDJN R/L 2020 K15 | 20 | 20 | 125 | 26 | DNM.1506.. |
|
SM01817
|
SM01824
|

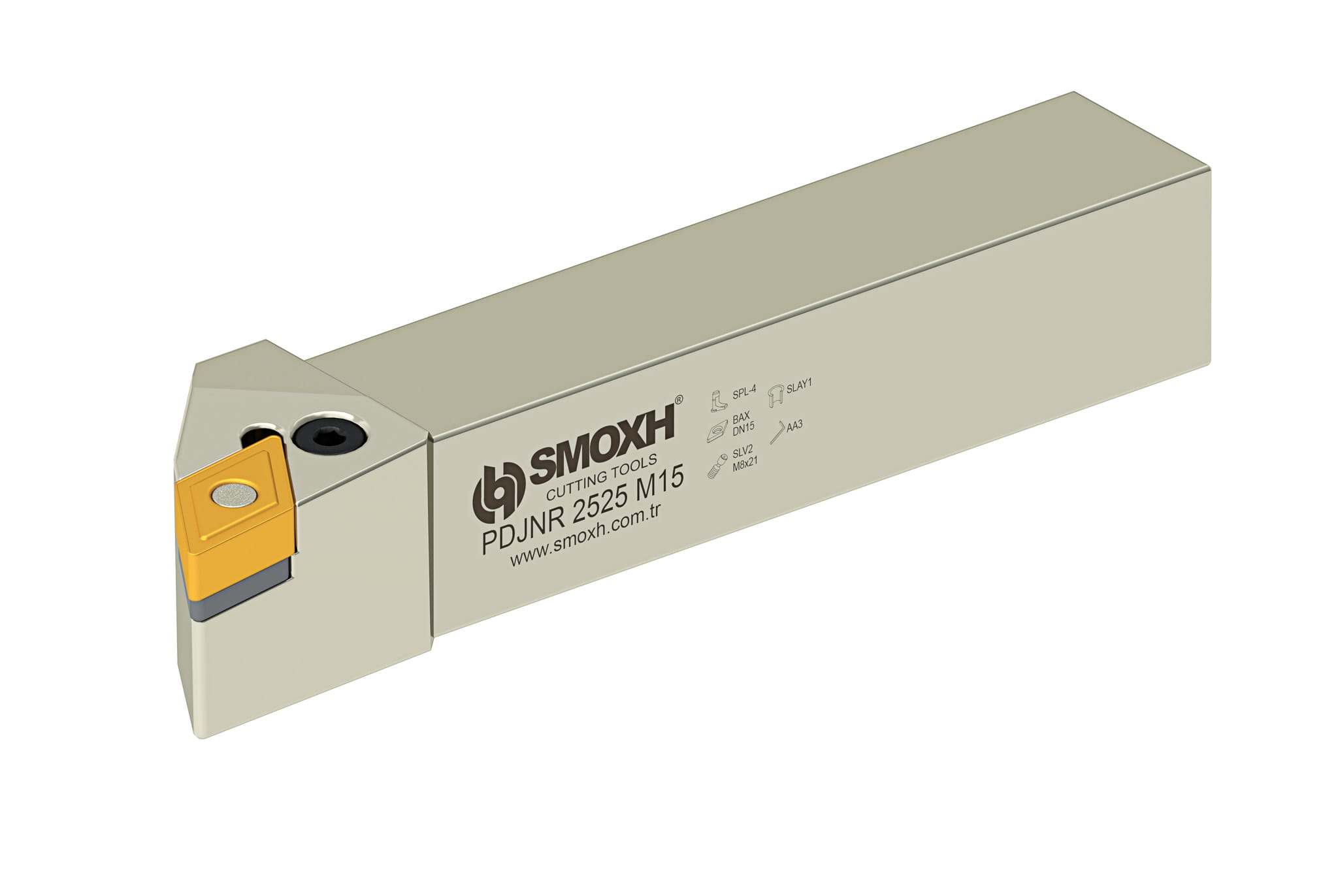

PDJN R/L 2525 M15 | 25 | 25 | 150 | 32 | |
|
SM01831
|
SM01848
|
PDJN R/L 3232 P15 | 32 | 32 | 170 | 38 | |
|
SM25967
|
SM25950
|
PDJN R/L 4040 S15 | 40 | 40 | 250 | 47 | |
| Size Designation | Master Insert* | Spare Parts | ||||
![]() |
Lever | Lever Screw | Shim | Shim Spring | Allen Key | |
![]() |
![]() |
![]() |
![]() |
![]() |
||
| 2020 - 4040 | DNM.1506.. | SPL4 9123 | SLV4 M8x21 9229 | BAX DN15-9602 | SLAY1 9701 | SAK-AA3-9902 |
