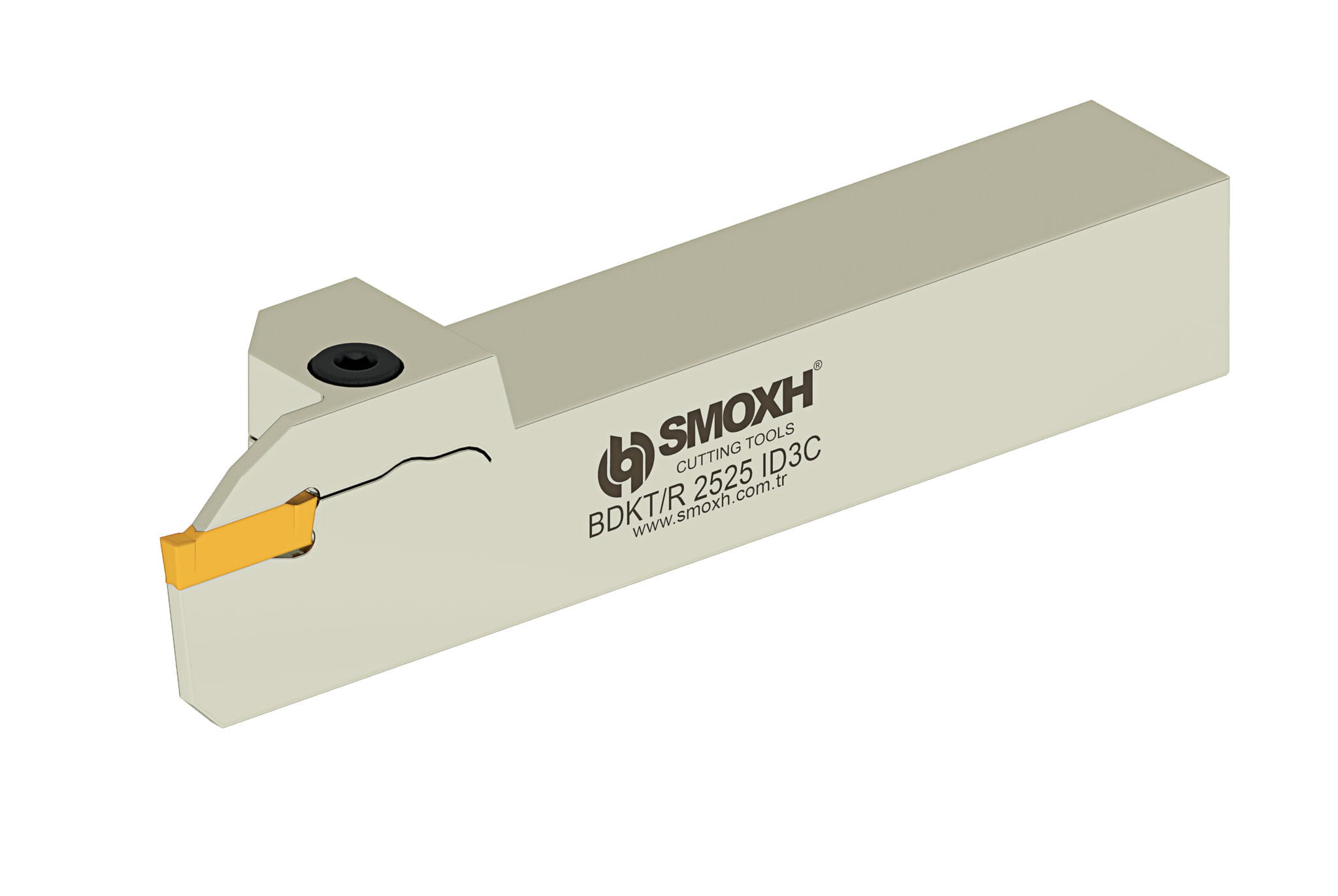

Nóż tokarski składany BDKT 2020 BDKT/R K2C-T18
Dostępność:
na magazynie
Wysyłka w:
24 godziny
Producent:
Smoxh Cutting Tools
Kod produktu:
SM09455
Opis
| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | |||||||

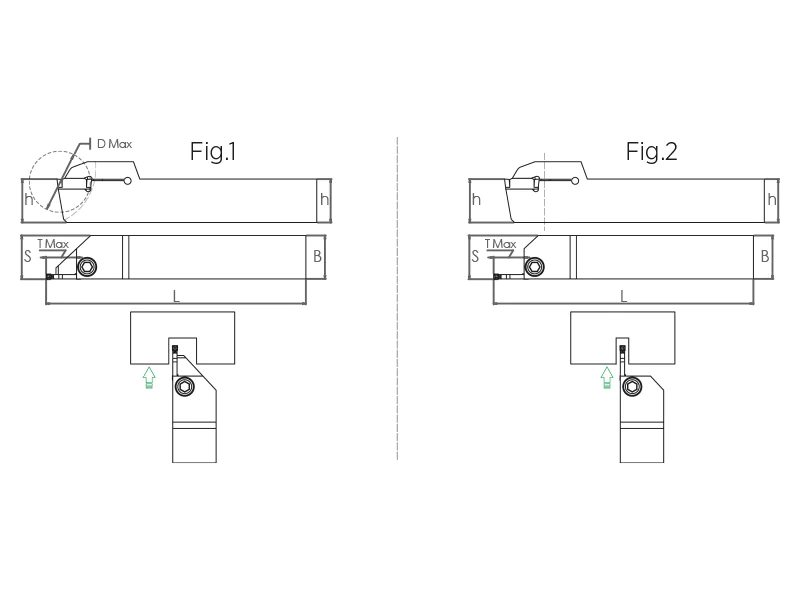

| Direction | BDKT R/L-MGM | Fig. | h | B | L | S | t Max | D Max |  |
|
| Right | Left | |||||||||
| SM09493 | SM09691 | 1212 BDKT R/L-K2C t max:15 | 1 | 12 | 12 | 100 | 12.3 | 15 | 34 | MGM. 2C |
| SM09479 | SM09660 | 1616 BDKT R/L-K2C t max:18 | 1 | 16 | 16 | 125 | 16.3 | 18 | 40 | |
| SM09455 | SM09653 | 2020 BDKT R/L-K2C t max:18 | 1 | 20 | 20 | 125 | 20.3 | 18 | 40 | |
| SM27411 | SM38851 | 2020 BDKT R/L-K2C t max:12 | 1 | 20 | 20 | 125 | 20.3 | 12 | 36 | |
| SM09462 | SM09677 | 2525 BDKT R/L-K2C t max:18 | 1 | 25 | 25 | 150 | 25.3 | 18 | 46 | |
| SM09486 | SM09684 | 3232 BDKT R/L-K2C t max:18 | 1 | 32 | 32 | 170 | 32.3 | 18 | 72 | |
| SM47747 | SM47754 | 2020 BDKT R/L-K2.5C t max:18 | 1 | 20 | 20 | 125 | 20.4 | 18 | 40 | MGM. 2.5C |
| SM47761 | SM47778 | 2525 BDKT R/L-K2.5C t max:18 | 1 | 25 | 25 | 150 | 25.4 | 18 | 46 | |
| SM09547 | SM09745 | 1212 BDKT R/L-K3C t max:18 | 1 | 12 | 12 | 100 | 12.3 | 18 | 38 | MGM. 3C |
| SM09523 | SM09714 | 1616 BDKT R/L-K3C t max:18 | 1 | 16 | 16 | 125 | 16.4 | 18 | 40 | |
| SM09509 | SM09707 | 2020 BDKT R/L-K3C t max:20 | 1 | 20 | 20 | 125 | 20.4 | 20 | 44 | |
| SM57258 | SM57265 | 2020 BDKT R/L-K3C-T t max:20 | 2 | 20 | 20 | 125 | 20.4 | 20 | - | |
| SM09516 | SM09721 | 2525 BDKT R/L-K3C t max:22 | 1 | 25 | 25 | 150 | 25.4 | 22 | 50 | |
| SM57173 | SM57180 | 2525 BDKT R/L-K3C-T t max:22 | 2 | 25 | 25 | 150 | 25.4 | 22 | - | |
| SM24601 | SM25141 | 2525 BDKT R/L-K3C t max:25 | 1 | 25 | 25 | 150 | 25.4 | 25 | 54 | |
| SM57197 | SM57203 | 2525 BDKT R/L-K3C-T t max:25 | 2 | 25 | 25 | 150 | 25.4 | 25 | - | |
| SM24625 | SM25134 | 2525 BDKT R/L-K3C t max:40 | 1 | 25 | 25 | 170 | 25.4 | 40 | 84 | |
| SM09530 | SM09738 | 3232 BDKT R/L-K3C t max:22 | 1 | 32 | 32 | 170 | 32.4 | 22 | 76 | |
| SM09554 | SM09752 | 2020 BDKT R/L-K4C t max:20 | 1 | 20 | 20 | 125 | 20.4 | 20 | 44 | MGM. 4C |
| SM57272 | SM57289 | 2020 BDKT R/L-K4C-T t max:20 | 2 | 20 | 20 | 125 | 20.4 | 20 | - | |
| SM27428 | SM38844 | 2020 BDKT R/L-K4C t max:25 | 1 | 20 | 20 | 125 | 20.4 | 25 | 54 | |
| SM09561 | SM09769 | 2525 BDKT R/L-K4C t max:22 | 1 | 25 | 25 | 150 | 25.4 | 22 | 50 | |
| SM24618 | SM25127 | 2525 BDKT R/L-K4C t max:25 | 1 | 25 | 25 | 150 | 25.4 | 25 | 54 | |
| SM24687 | SM25110 | 2525 BDKT R/L-K4C t max:40 | 1 | 25 | 25 | 170 | 25.4 | 40 | 84 | |
| SM09578 | SM09776 | 3232 BDKT R/L-K4C t max:22 | 1 | 32 | 32 | 170 | 32.4 | 22 | 76 | |
| SM09585 | SM09783 | 2020 BDKT R/L-K5C t max:20 | 1 | 20 | 20 | 125 | 20.5 | 20 | 44 | MGM. 5C |
| SM09592 | SM09790 | 2525 BDKT R/L-K5C t max:25 | 1 | 25 | 25 | 150 | 25.5 | 25 | 54 | |
| SM37830 | SM37847 | 2525 BDKT R/L-K5C t max:40 | 1 | 25 | 25 | 170 | 25.5 | 40 | 84 | |
| SM09608 | SM09806 | 3232 BDKT R/L-K5C t max:25 | 1 | 32 | 32 | 170 | 32.5 | 25 | 82 | |
| SM09615 | SM09813 | 2525 BDKT R/L-K6C t max:25 | 1 | 25 | 25 | 150 | 25.6 | 25 | 54 | MGM. 6C |
| SM09622 | SM09820 | 3232 BDKT R/L-K6C t max:25 | 1 | 32 | 32 | 170 | 32.6 | 25 | 82 | |
| SM09646 | SM09837 | 2525 BDKT R/L-K8C t max:25 | 1 | 25 | 25 | 150 | 25.6 | 25 | 54 | MGM. 8C |
| SM09639 | SM09844 | 3232 BDKT R/L-K8C t max:27 | 1 | 32 | 32 | 170 | 32.8 | 27 | 86 | |
| Descriptions | Master Insert* | Spare Parts | |
 |
Screw | Allen Key | |
 |
 |
||
| 1212 | MGM (2C - 3C) | BKTV M5x17-9211 | SAK-AA4-9903 |
| 1616 | BKTV M6x25-9215 | ||
| 2020 - 3232 | MGM (2C) | BKTV M6x25-9215 | |
| 2020 - 3232 | MGM (3C - 8C) | BKTV M8x1x25-9232 | |
