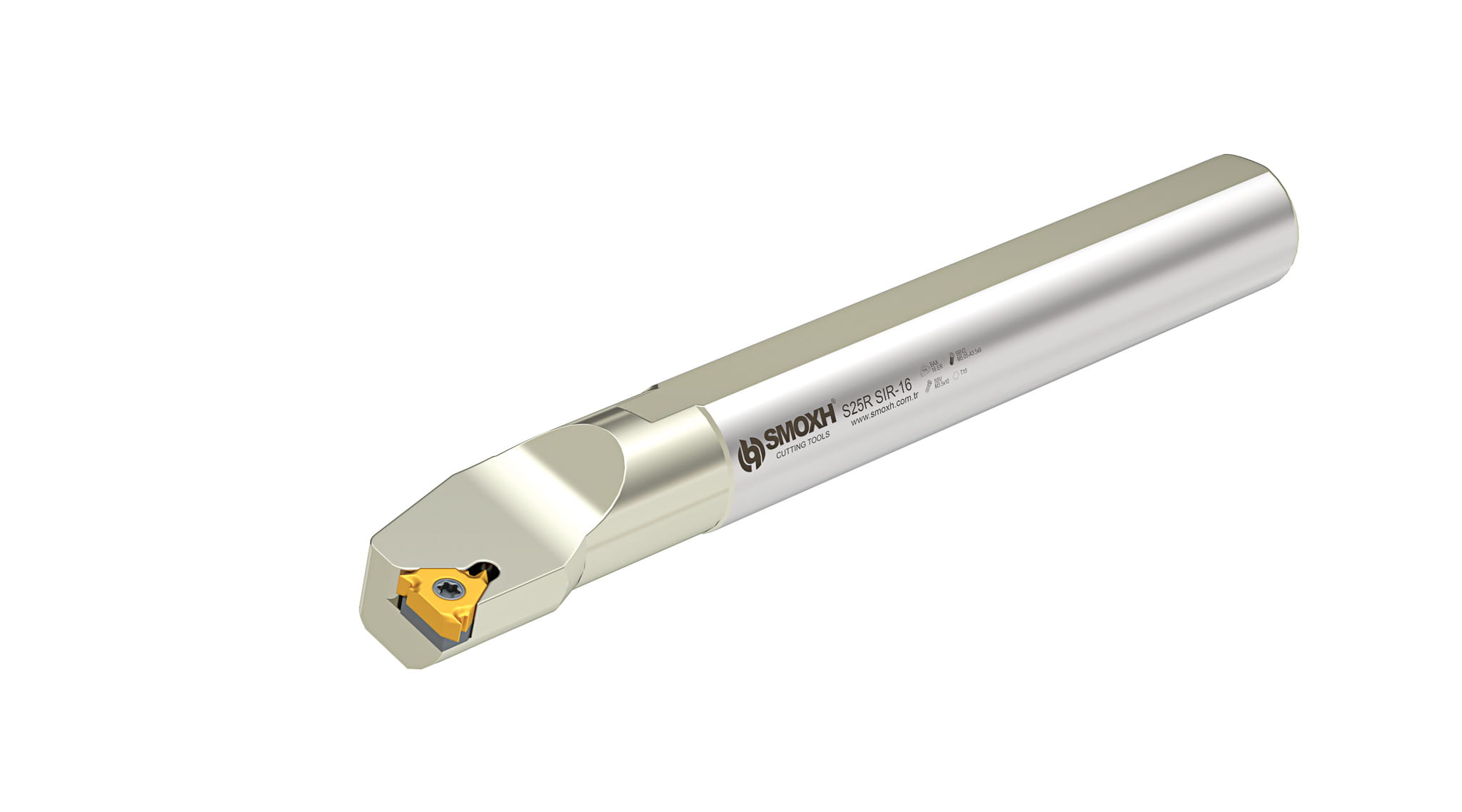

Nóż do gwintów wewnętrznych S20P SIL-22
Dostępność:
na magazynie
Wysyłka w:
24 godziny
Producent:
Smoxh Cutting Tools
Kod produktu:
SM12080
Opis

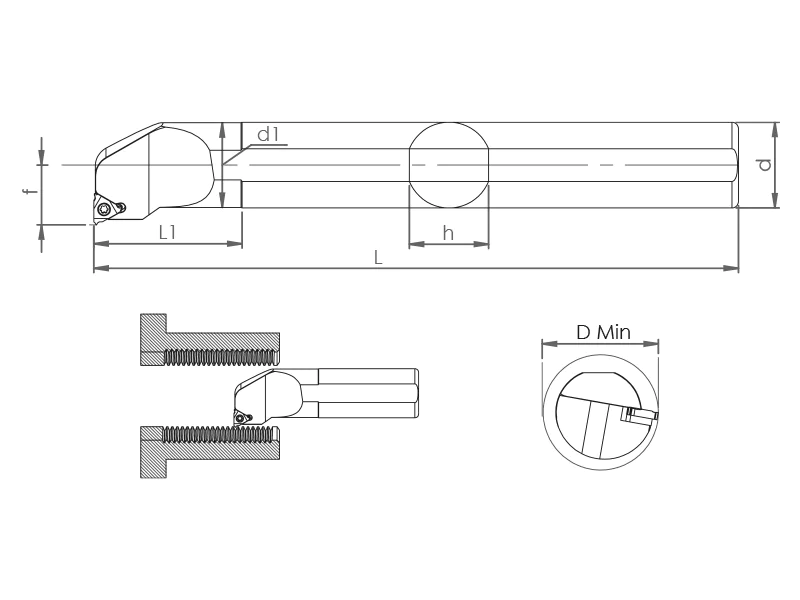

| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | |||||||
| Direction | SIR/L | d | d1 | h | L | f | L1 | D min |  |
|
| Right | Left | |||||||||
|
SM11793
|
SM11809
|
S16x07M SIR/L-08 | 16 | 7 | 15 | 150 | 5.3 | 18 | 7.8 | 08 IR/IL ISO |
|
SM11830
|
SM11847
|
S10K SIR/L-11 | 10 | 10 | 9 | 125 | 7 | - | 12 | 11 IR/IL ISO |
|
SM11854
|
SM11861
|
S12K SIR/L-11 | 12 | 12 | 11 | 125 | 10 | - | 16 | |
|
SM00579
|
SM00586
|
S16M SIR/L-11 | 16 | 13 | 15 | 150 | 11 | - | 19 | |
|
SM11878
|
SM11885
|
S16x10M SIR/L-11 | 16 | 10 | 15 | 150 | 7 | 32 | 12 | |
|
SM11823
|
SM11816
|
S16x13M SIR/L-11 | 16 | 13 | 15 | 150 | 9 | 32 | 15 | |
|
SM11991
|
SM12004
|
S16x13M SIR/L-16 | 16 | 16 | 15 | 150 | 10 | 32 | 16 | 16 IR/IL ISO (0.35-3) |
|
SM11915
|
SM11953
|
S16M SIR/L-16 | 16 | 13 | 15 | 150 | 11 | - | 19 | |
|
SM12011
|
SM12028
|
S20x16P SIR/L-16 | 20 | 16 | 18 | 170 | 11 | 35 | 19 | |
|
SM11922
|
SM11960
|
S20P SIR/L-16 | 20 | 20 | 18 | 170 | 14 | - | 24 | |
|
SM11939
|
SM11977
|
S25R SIR/L-16 | 25 | 25 | 23 | 200 | 16.5 | - | 29 | |
|
SM11946
|
SM11892
|
S32S SIR/L-16 | 32 | 32 | 30 | 250 | 20 | - | 36 | |
|
SM11984
|
SM11908
|
S40T SIR/L-16 | 40 | 40 | 37 | 300 | 24 | - | 44 | |
|
SM56961
|
SM56978
|
S25R SITR/L-16 (Trapezoidal) | 25 | 25 | 23 | 200 | 16.5 | - | 29 | 16 IR/IL Trapezoidal (1.5-3) |
|
SM56985
|
SM56992
|
S32S SITR/L-16 (Trapezoidal) | 32 | 32 | 30 | 250 | 20 | - | 36 | |
|
SM12042
|
SM12080
|
S20P SIR/L-22 | 20 | 20 | 18 | 170 | 14 | - | 24 | 22 IR/IL ISO (3.5-4.5) |
|
SM12059
|
SM12097
|
S25R SIR/L-22 | 25 | 25 | 23 | 200 | 16.5 | - | 29 | |
|
SM12066
|
SM12103
|
S32S SIR/L-22 | 32 | 32 | 30 | 250 | 20 | - | 38 | |
|
SM12073
|
SM12035
|
S40T SIR/L-22 | 40 | 40 | 37 | 300 | 24 | - | 46 | |
|
SM57005
|
SM57012
|
S25R SITR/L-22 (Trapezoidal) | 25 | 25 | 23 | 200 | 16.5 | - | 29 | 22 IR/IL Trapezoidal (4-6) |
|
SM57029
|
SM57036
|
S32S SITR/L-22 (Trapezoidal) | 32 | 32 | 30 | 250 | 20 | - | 38 | |
|
SM57159
|
SM57166
|
S40T SITR/L-22 (Trapezoidal) | 40 | 40 | 37 | 300 | 24 | - | 46 | |
| Size Designation | Master Insert* | Spare Parts | |||
|
Clamp Screw | Shim | Shim Screw | Torx Key | |
 |
 |
 |
 |
||
| S16x07 | 08 IR/IL ISO | SSV M2.2x5-9503 | - | - | STK-T06-9906 |
| S10 - S16 | 11 IR/IL | SSV M2.5x6-9505 | - | - | STK-T08-9908 |
| S16x13 | 16 IR/IL-ISO (0.35-3) | SSV M3.5x8-9510 | - | - | STK-T15-9910 |
| S16 - S20 | SSV M3.5x10-9511 | - | - | ||
| S25 | BAX ER/L-16-9623 | SBV5 M5.05-A3.5x9-9408 | |||
| S32 - S40 | SSV M3.5x14-9512 | SBV M5.05-A3.5x11-9407 | |||
| S25 - S32 (Trapezoidal) | 16 IR/IL-TR (1.5-3) | - | - | ||
| S20 - S25 | 22 IR/IL ISO (3.5-4.5) | SSV M4x12-9515 | - | - | |
| S32 - S40 | SSV M4x14-9516 | BAX ER/L-22-9624 | SBV3 M6x0.75 A4x10-9412 | ||
| S25 - S40 (Trapezoidal) | 22 IR/IL-TR (4-6) | - | - | ||
