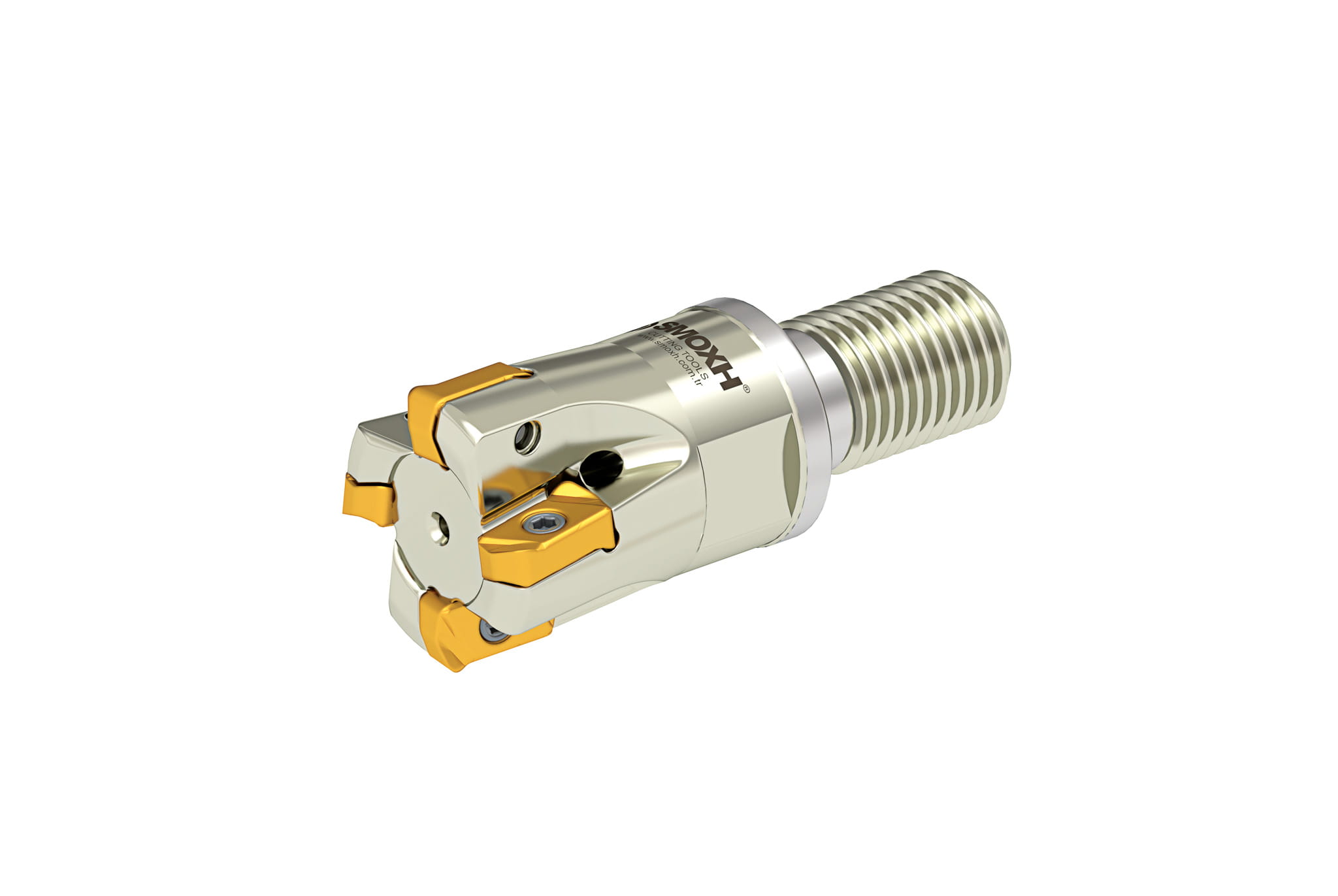

Głowica high-feed MHT LN03 D32 M16 L43 Z05-H
Dostępność:
na magazynie
Wysyłka w:
24 godziny
Producent:
Smoxh Cutting Tools
Kod produktu:
SM51959
Opis

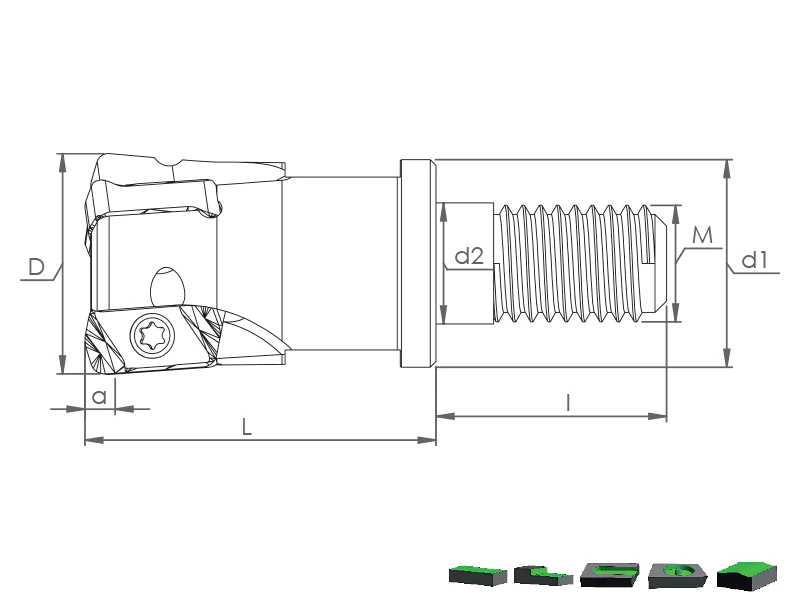

| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | ||||||||
| MHT LNMU 0303.. |  |
D | Z | d1 | d2 | L | I | M | a |  |
|
|
STEP SM45552
|
MHT LN03 D16 M08 L25 Z02-H |  |
16 | 2 | 15 | 8.5 | 25 | 17 | 8 | 1 | LNMU 0303.. |
|
STEP SM45569
|
MHT LN03 D20 M10 L30 Z03-H | |
20 | 3 | 18 | 10.5 | 30 | 19 | 10 | 1 | |
|
STEP SM45576
|
MHT LN03 D25 M12 L35 Z04-H | |
25 | 4 | 21 | 12.5 | 35 | 23 | 12 | 1 | |
|
STEP SM51959
|
MHT LN03 D32 M16 L43 Z05-H | |
32 | 5 | 29 | 17 | 43 | 23 | 16 | 1 | |
|
STEP SM60401
|
MHT LN03 D40 M16 L43 Z05-H | |
40 | 5 | 29 | 17 | 43 | 23 | 16 | 1 | |
|
STEP SM51966
|
MHT LN03 D40 M16 L43 Z06-H | |
40 | 6 | 29 | 17 | 43 | 23 | 16 | 1 | |
|
STEP SM00265
|
MHT LN03 D42 M16 L43 Z06-H | |
42 | 6 | 29 | 17 | 43 | 23 | 16 | 1 | |
| Size Designation | Master Insert* | Spare Parts | ||
|
Screw | Torx Key | Screw Torque Value | |
 |
 |
 N.m |
||
| D16 - D18 | LNMU 0303.. | SSV M2.5x6-9505 | STK-T08-9908 | 1,2 |
| D20 - D50 | SSV M2.5x7-9507 | |||
| D32 - D63 | LNMU 06X5.. | SSV M5x13-9519 | STK-T20-9911 | 8,5 |
