Głowica high-feed HST LN03 D16 W16 L150 Z02-H
Dostępność:
na magazynie
Wysyłka w:
24 godziny
Producent:
Smoxh Cutting Tools
Kod produktu:
SM45507
Opis

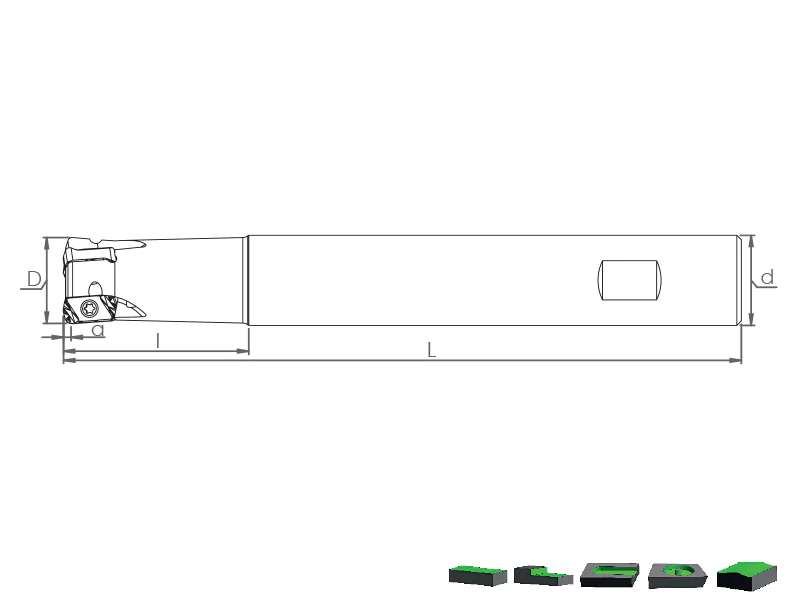

| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | ||||||
| HST LNMU 0303.. |  |
D | d | Z | L | l | a |  |
|
|
STEP SM45507
|
HST LN03 D16 W16 L150 Z02-H |  |
16 | 16 | 2 | 150 | 40 | 1 | LNMU 0303.. |
|
STEP SM01385
|
HST LN03 D17 W16 L150 Z02-H | |
17 | 16 | 2 | 150 | 30 | 1 | |
|
STEP SM52871
|
HST LN03 D17 C16 L200 Z02 | - | 17 | 16 | 2 | 200 | 30 | 1 | |
|
STEP SM49741
|
HST LN03 D18 W16 L150 Z02-H | |
18 | 16 | 2 | 150 | 30 | 1 | |
|
STEP SM45514
|
HST LN03 D20 W20 L150 Z03-H | |
20 | 20 | 3 | 150 | 40 | 1 | |
|
STEP SM52833
|
HST LN03 D21 W20 L150 Z03-H | |
21 | 20 | 3 | 150 | 30 | 1 | |
|
STEP SM52888
|
HST LN03 D21 C20 L200 Z03 | - | 21 | 20 | 3 | 200 | 30 | 1 | |
|
STEP SM49758
|
HST LN03 D22 W20 L150 Z03-H | |
22 | 20 | 3 | 150 | 30 | 1 | |
|
STEP SM45521
|

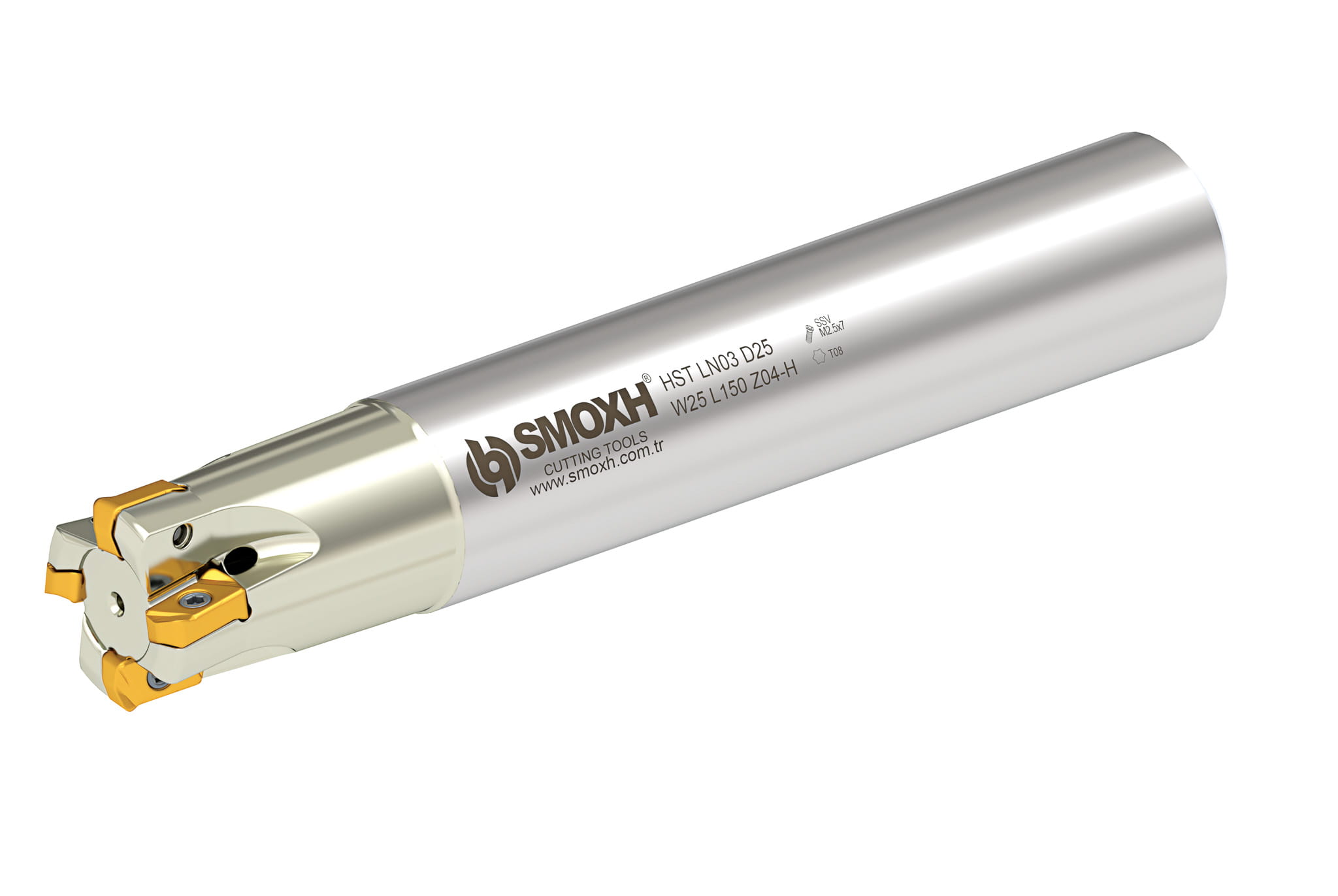

HST LN03 D25 W25 L150 Z04-H | |
25 | 25 | 4 | 150 | 40 | 1 | |
|
STEP SM52840
|
HST LN03 D26 W25 L150 Z04-H | |
26 | 25 | 4 | 150 | 30 | 1 | |
|
STEP SM52895
|
HST LN03 D26 C25 L200 Z04 | - | 26 | 25 | 4 | 200 | 30 | 1 | |
|
STEP SM52857
|
HST LN03 D32 W32 L150 Z05-H | |
32 | 32 | 5 | 150 | 40 | 1 | |
|
STEP SM52864
|
HST LN03 D33 W32 L150 Z05-H | |
33 | 32 | 5 | 150 | 30 | 1 | |
|
STEP SM52901
|
HST LN03 D33 C32 L200 Z05 | - | 33 | 32 | 5 | 200 | 30 | 1 | |
| Size Designation | Master Insert* | Spare Parts | ||
|
Screw | Torx Key | Screw Torque Value | |
 |
 |
 N.m |
||
| D16 - D18 | LNMU 0303.. | SSV M2.5x6-9505 | STK-T08-9908 | 1,2 |
| D20 - D50 | SSV M2.5x7-9507 | |||
| D32 - D63 | LNMU 06X5.. | SSV M5x13-9519 | STK-T20-9911 | 8,5 |
