Głowica frezerska TK RD10T3 D40 A16 Z04-H
Dostępność:
na magazynie
Wysyłka w:
24 godziny
Producent:
Smoxh Cutting Tools
Kod produktu:
SM32958
Opis

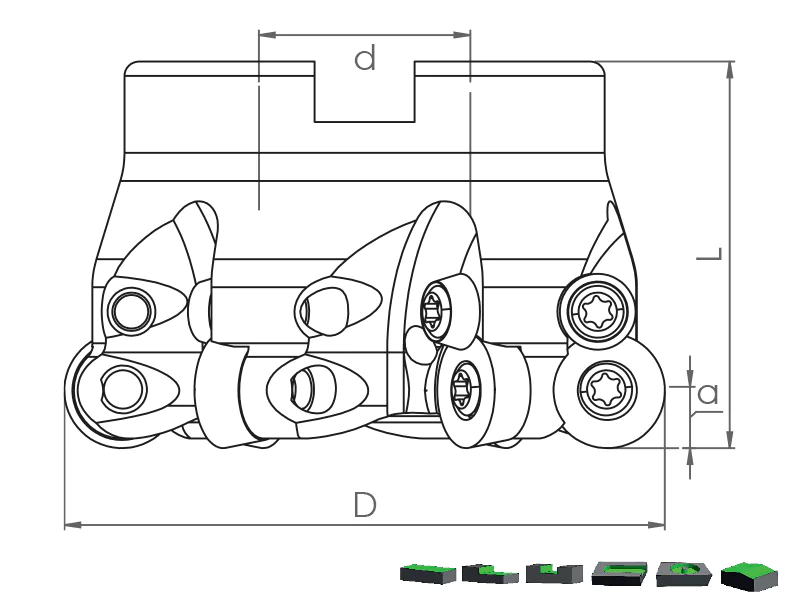

| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | |||||
| TK RD.. 10T3.. / 1204 |  |
D | Z | d | L | a |  |
|
| SM32958 | TK RD10T3 D40 A16 Z04-H |  |
40 | 4 | 16 | 40 | 5 | RD.. 10T3.. |
| SM32903 | TK RD10T3 D40 A16 Z04 | - | 40 | 4 | 16 | 40 | 5 | |
| SM32934 | TK RD10T3 D50 A22 Z05-H | |
50 | 5 | 22 | 40 | 5 | |
| SM32910 | TK RD10T3 D50 A22 Z05 | - | 50 | 5 | 22 | 40 | 5 | |
| SM32941 | TK RD10T3 D63 A22 Z06-H | |
63 | 6 | 22 | 40 | 5 | |
| SM32927 | TK RD10T3 D63 A22 Z06 | - | 63 | 6 | 22 | 40 | 5 | |
| SM32972 | TK RD1204 D40 A16 Z04-H | |
40 | 4 | 16 | 40 | 6 | RD.. 1204.. |
| SM32897 | TK RD1204 D40 A16 Z04 | - | 40 | 4 | 16 | 40 | 6 | |
| SM32989 | TK RD1204 D50 A22 Z05-H | |
50 | 5 | 22 | 40 | 6 | |
| SM32965 | TK RD1204 D50 A22 Z05 | - | 50 | 5 | 22 | 40 | 6 | |
| SM33252 | TK RD1204 D63 A22 Z06-H | |
63 | 6 | 22 | 40 | 6 | |
| SM33245 | TK RD1204 D63 A22 Z06 | - | 63 | 6 | 22 | 40 | 6 | |
| SM33276 | TK RD1204 D80 A27 Z07-H | |
80 | 7 | 27 | 50 | 6 | |
| SM33269 | TK RD1204 D80 A27 Z07 | - | 80 | 7 | 27 | 50 | 6 | |
| SM33290 | TK RD1204 D100 A32 Z08-H | |
100 | 8 | 32 | 50 | 6 | |
| SM33283 | TK RD1204 D100 A32 Z08 | - | 100 | 8 | 32 | 50 | 6 | |
| Size Designation | Master Insert* | Spare Parts | ||||
|
Screw | Torx Key | Wedge Clamp | Clamp Screw | Screw Torque Value | |
 |
 |
 |
|
 N.m |
||
| D40 - D63 | RD.. 10T3.. | SSV M3.5x10-9511 | STK-T15-9910 | RDTP 9124 | SSV M3.5x11 9532 | 2,9 |
| D40 - D100 | RD.. 1204.. | |||||
