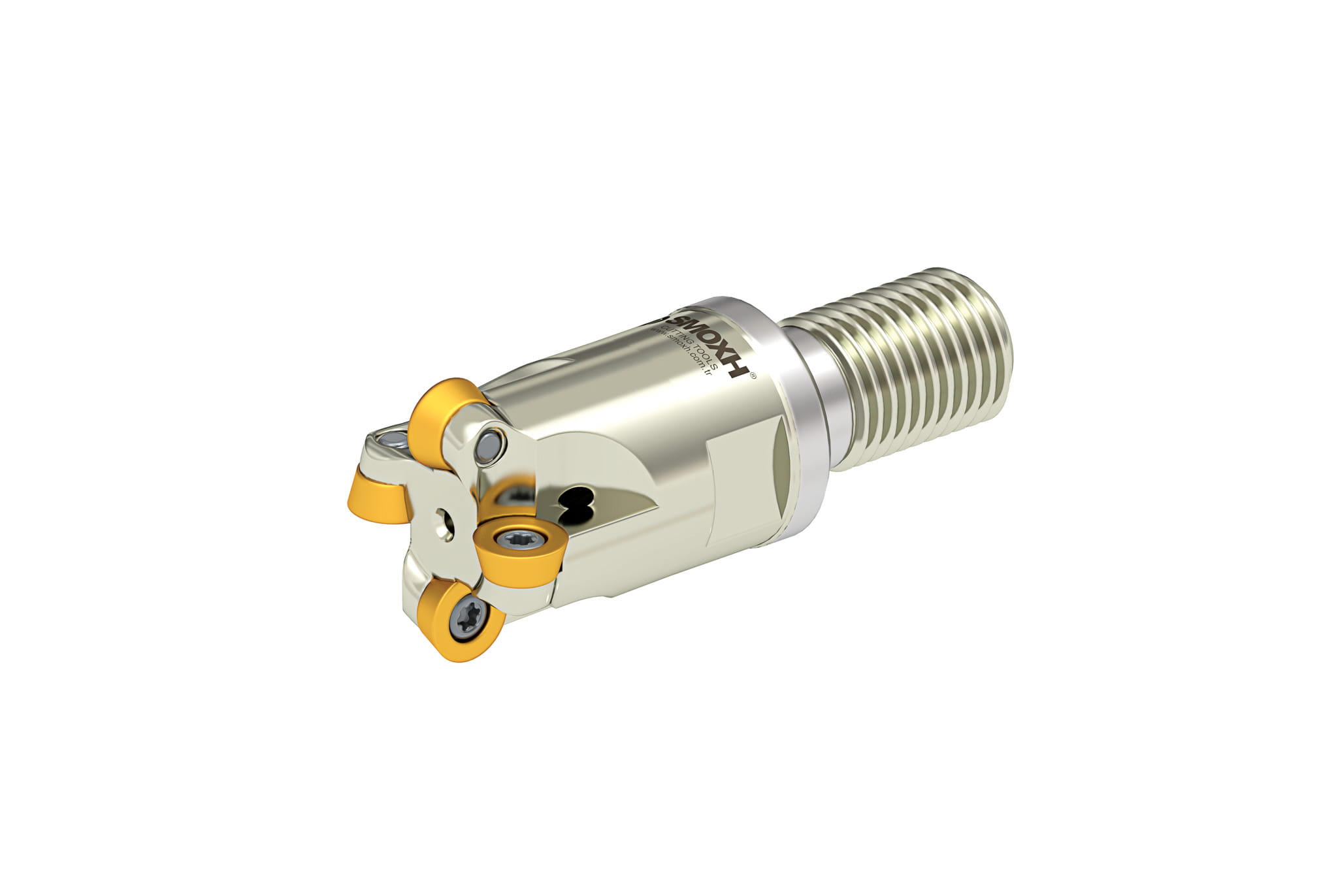

Głowica frezerska MT RD1204 D35 M16 L43 Z03-H
Dostępność:
na magazynie
Wysyłka w:
24 godziny
Producent:
Smoxh Cutting Tools
Kod produktu:
SM54516
Opis

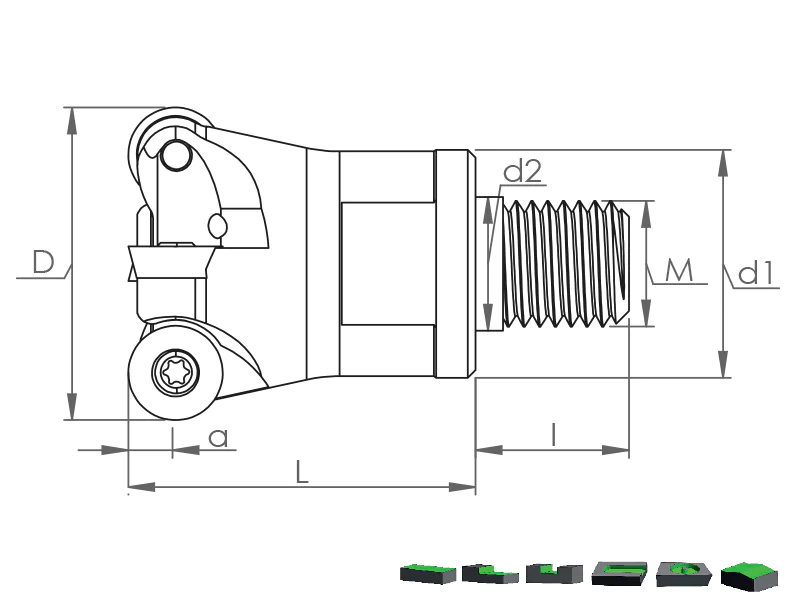

| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | ||||||||
| MT RD.. 10T3.. / 1204.. |  |
D | Z | d1 | d2 | L | I | M | a |  |
|
| SM54486 | MT RD10T3 D20 M10 L30 Z02-H |  |
20 | 2 | 18 | 10.5 | 30 | 19 | 10 | 5 | RD.. 10T3.. |
| SM54493 | MT RD10T3 D25 M12 L35 Z02-H | |
25 | 2 | 21 | 12.5 | 35 | 23 | 12 | 5 | |
| SM54509 | MT RD10T3 D32 M16 L43 Z03-H | |
32 | 3 | 29 | 17 | 43 | 23 | 16 | 5 | |
| SM52819 | MT RD1204 D32 M16 L43 Z03-H | |
32 | 3 | 29 | 17 | 43 | 23 | 16 | 6 | RD.. 1204.. |
| SM54516 | MT RD1204 D35 M16 L43 Z03-H | |
35 | 3 | 29 | 17 | 43 | 23 | 16 | 6 | |
| SM54523 | MT RD1204 D40 M16 L43 Z04-H | |
40 | 4 | 29 | 17 | 43 | 23 | 16 | 6 | |
| SM52826 | MT RD1204 D42 M16 L43 Z04-H | |
42 | 4 | 29 | 17 | 43 | 23 | 16 | 6 | |
| Size Designation | Master Insert* | Spare Parts | ||||
|
Screw | Torx Key | Wedge Clamp | Clamp Screw | Screw Torque Value | |
 |
 |
 |
|
 N.m |
||
| D20 | RD.. 10T3 | SSV M3.5x8-9510 | STK-T15-9910 | - | - | 2,9 |
| D25 - D32 | SSV M3.5x10-9511 | |||||
| D32 - D42 | RD.. 1204.. | |||||
