Głowica frezerska 45° TK45 XN06 D100 A32 Z09-H
Dostępność:
na magazynie
Wysyłka w:
24 godziny
Producent:
Smoxh Cutting Tools
Kod produktu:
SM55230
Opis

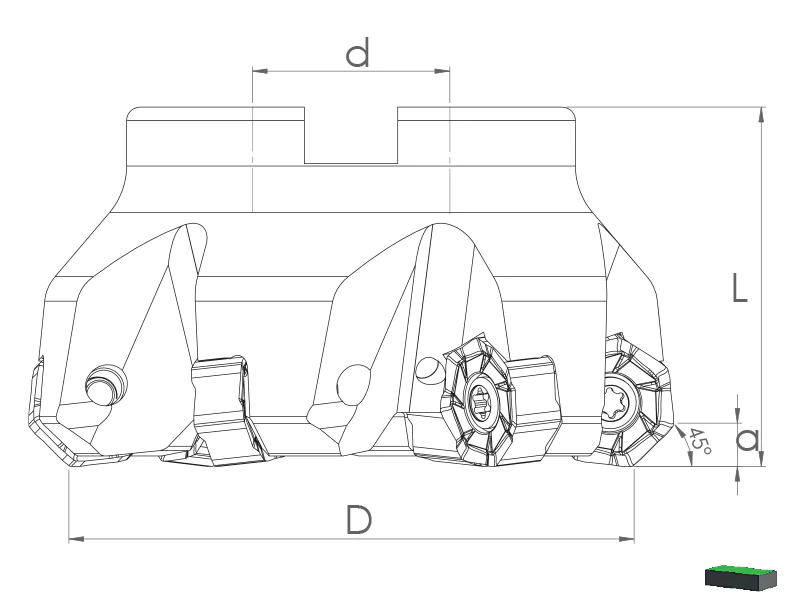

| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | |||||
| TK45 XNMU 0605.. / 0906.. |  |
D | Z | d | L | a |  |
|
| SM55209 | TK45 XN06 D50 A22 Z05-H |  |
50 | 5 | 22 | 40 | 3.5 | XNMU 0605.. |
| SM55216 | TK45 XN06 D63 A22 Z06-H | |
63 | 6 | 22 | 40 | 3.5 | |
| SM55223 | TK45 XN06 D80 A27 Z08-H | |
80 | 8 | 27 | 50 | 3.5 | |
| SM55230 | TK45 XN06 D100 A32 Z09-H | |
100 | 9 | 32 | 50 | 3.5 | |

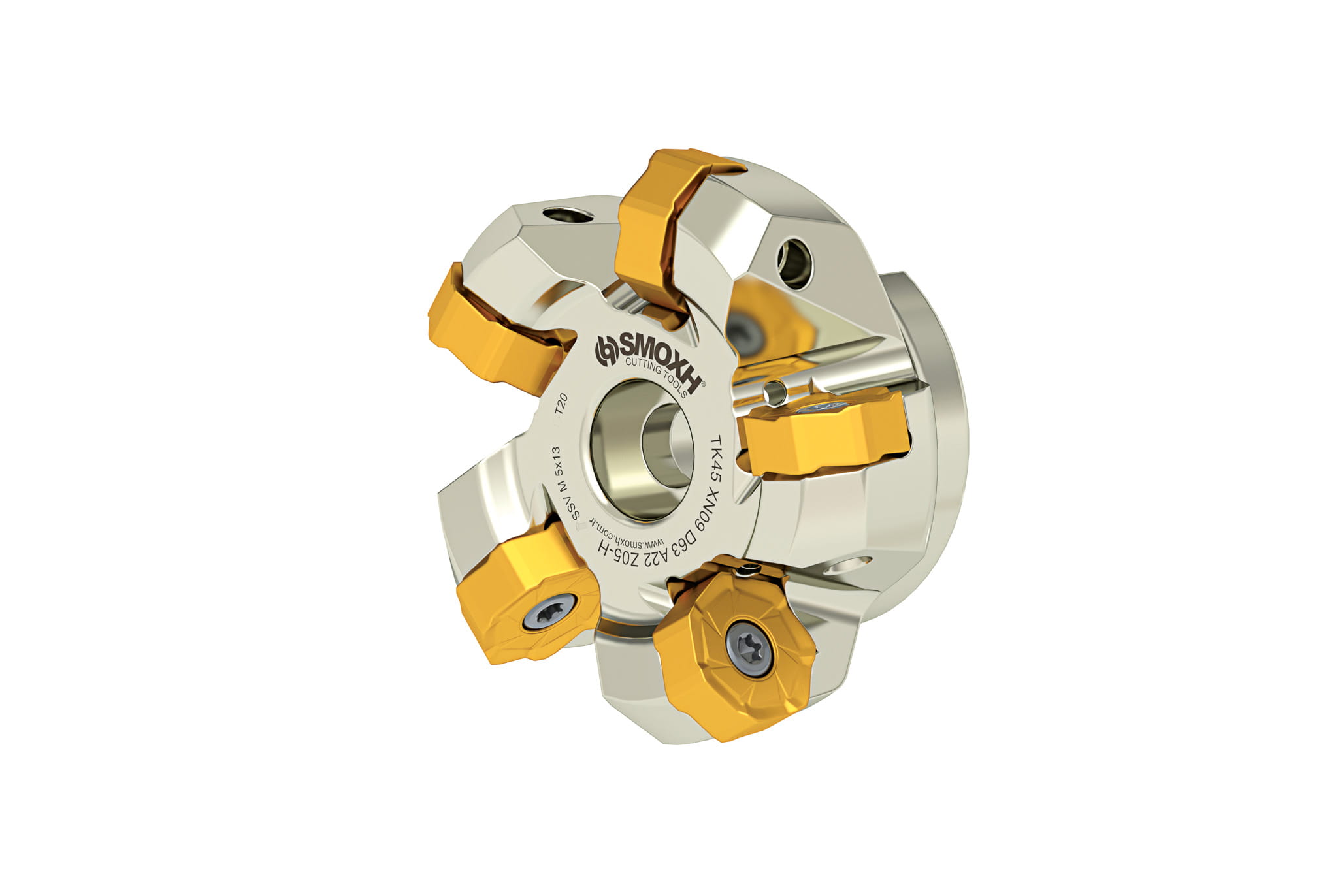

| SM55308 | TK45 XN09 D63 A22 Z05-H | |
63 | 5 | 22 | 40 | 5 | XNMU 0906.. |
| SM55315 | TK45 XN09 D80 A27 Z06-H | |
80 | 6 | 27 | 50 | 5 | |
| SM55322 | TK45 XN09 D100 A32 Z08-H | |
100 | 8 | 32 | 50 | 5 | |
| SM55339 | TK45 XN09 D125 B40 Z10 | - | 125 | 10 | 40 | 63 | 5 | |
| Size Designation | Master Insert* | Spare Parts | ||
|
Screw | Torx Key | Screw Torque Value | |
 |
 |
 N.m |
||
| D50 - D100 | XNMU 0605.. | SSV M4x12-9515 | STK-T15-9910 | 4,3 |
| D63 - D125 | XNMU 0906.. | SSV M5x13-9519 | STK-T20-9911 | 8,5 |
