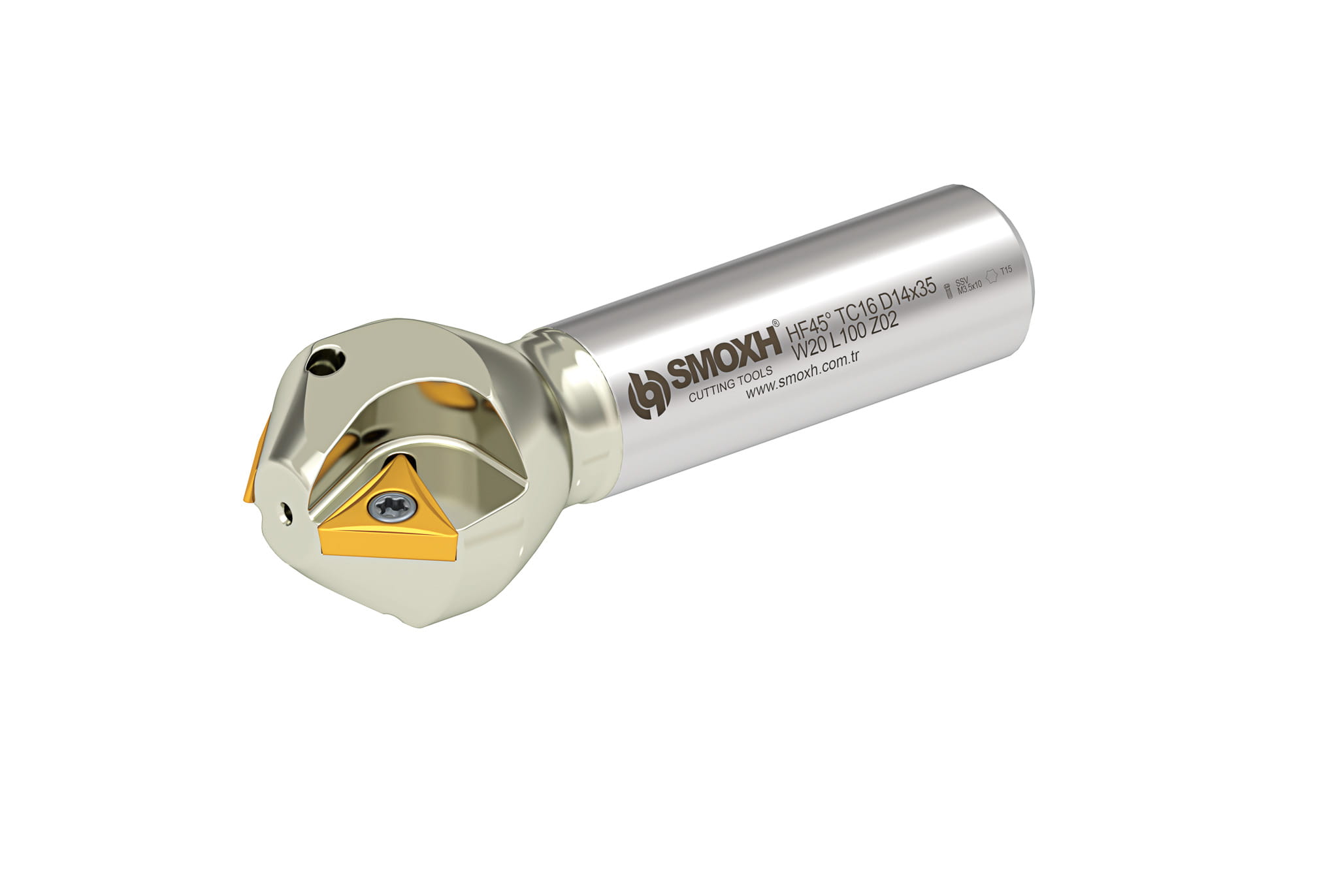

Fazownik HF45 TC16 D5-26 W16 L100 Z01
Dostępność:
na magazynie
Wysyłka w:
24 godziny
Producent:
Smoxh Cutting Tools
Kod produktu:
SM52147
Opis
| Ordering Code | Item Designation | Dimensions (mm) | Master Insert* | |||||||
| HF 10/15/17.5/20/22.5/25/30/45 TCM. 1102.. / 16T3.. CHAMFERING TOOLS |  |

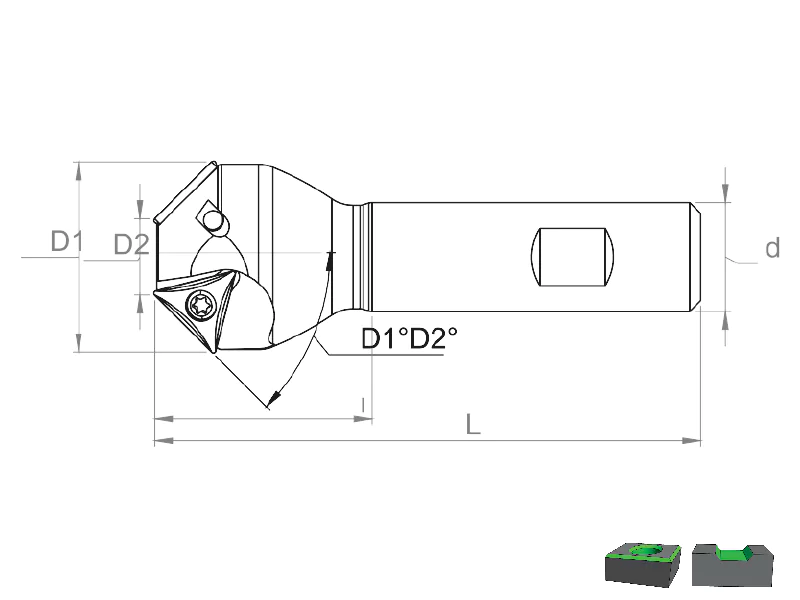

D1° D2° | D2 | D1 | L | d | Z | I |  |
|
| SM15401 | HF10 TC16 D18-21 W16 L100 Z01 | - | 10° | 18 | 21 | 100 | 16 | 1 | 30 | TCM. 16T3.. |
| SM15418 | HF15 TC16 D17-22 W16 L100 Z01 | - | 15° | 17 | 22 | 100 | 16 | 1 | 30 | |
| SM15425 | HF17.5 TC16 D17-24 W16 L100 Z01 | - | 17.5° | 17 | 24 | 100 | 16 | 1 | 30 | |
| SM15449 | HF20 TC16 D12-20 W16 L100 Z01 | - | 20° | 12 | 20 | 100 | 16 | 1 | 30 | |
| SM15432 | HF20 TC16 D17-26 W16 L100 Z01 | - | 20° | 17 | 26 | 100 | 16 | 1 | 30 | |
| SM15456 | HF22.5 TC16 D17-28 W20 L100 Z01 | - | 22.5° | 17 | 28 | 100 | 20 | 1 | 30 | |
| SM15463 | HF25 TC16 D17-30 W16 L100 Z01 | - | 25° | 17 | 30 | 100 | 16 | 1 | 30 | |
| SM15470 | HF30 TC16 D6-20 W16 L100 Z01 | - | 30° | 6 | 20 | 100 | 16 | 1 | 30 | |
| SM15487 | HF30 TC16 D20-35 W16 L100 Z02 | - | 30° | 20 | 35 | 100 | 16 | 2 | 40 | |
| SM15494 | HF30 TC16 D30-45 W32 L100 Z03 | - | 30° | 30 | 45 | 100 | 32 | 3 | 40 | |
| SM50099 | HF45 TC11 D4-15 W16 L100 Z01-H |  |
45° | 4 | 15 | 100 | 16 | 1 | 30 | TCM. 1102.. |
| SM15500 | HF45 TC11 D4-15 W16 L100 Z01 | - | 45° | 4 | 15 | 100 | 16 | 1 | 30 | |
| SM52147 | HF45 TC16 D5-26 W16 L100 Z01 | - | 45° | 5 | 26 | 100 | 16 | 1 | 30 | TCM. 16T3.. |
| SM50105 | HF45 TC16 D10-31 W20 L100 Z02-H | |
45° | 10 | 31 | 100 | 20 | 2 | 35 | |
| SM15517 | HF45 TC16 D10-31 W20 L100 Z02 | - | 45° | 10 | 31 | 100 | 20 | 2 | 35 | |
| SM50112 | HF45 TC16 D14-35 W20 L100 Z02-H | |
45° | 14 | 35 | 100 | 20 | 2 | 40 | |
| SM15524 | HF45 TC16 D14-35 W20 L100 Z02 | - | 45° | 14 | 35 | 100 | 20 | 2 | 40 | |
| SM50129 | HF45 TC16 D22-43 W25 L100 Z03-H | |
45° | 22 | 43 | 100 | 25 | 3 | 40 | |
| SM15531 | HF45 TC16 D22-43 W25 L100 Z03 | - | 45° | 22 | 43 | 100 | 25 | 3 | 40 | |
| SM15548 | HF45 TC16 D32-53 W32 L100 Z04 | - | 45° | 32 | 53 | 100 | 32 | 4 | 45 | |
| SM51683 | HF55 TC16 D16-40 W20 L100 Z03 | - | 55° | 16 | 40 | 100 | 20 | 3 | 40 | |
| SM51690 | HF62 TC16 D14-40 W20 L100 Z03 | - | 62° | 14 | 40 | 100 | 20 | 3 | 40 | |
| SM51706 | HF72 TC16 D14-42 W20 L100 Z03 | - | 72° | 14 | 42 | 100 | 20 | 3 | 40 | |
| Size Designation | Master Insert* | Spare Parts | ||
|
Screw | Torx Key | Screw Torque Value | |
 |
 |
 N.m |
||
| D4-15 | TCM. 1102.. | SSV M2.5x7-9506 | STK-T08-9908 | 1,2 |
| D6-20 - ~ | TCM. 16T3. | SSV M3.5x10-9511 | STK-T15-9910 | 2,9 |
